Spokes Making Machine

Bicycle Butted Spokes Making Machine

Bicycle Butted Spokes Making Machine include Steel Wire Straightening and Cutting Device, Steel Wire Head Shrinking Machine, Bicycle Butted Spoke Variable Diameter Making Machine, ...
Product Details

Bicycle-Butted-Spokes-Making-Machine

Bicycle Butted Spokes Making Machine include Steel Wire Straightening and Cutting Device, Steel Wire Head Shrinking Machine, Bicycle Butted Spoke Variable Diameter Making Machine, Steel Wire Rod Cutting Machine and Bicycle Spoke Making Machine.  For straightening, cutting, head shrinking and spoke making. it only need one sets spoke making machine can complete by changing mould.

Automatic-Bicycle-Butted-Spokes-Making-Machine

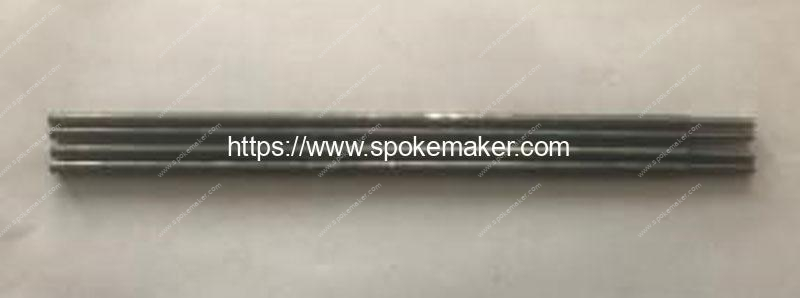

1. Steel Wire Straightening, Cutting and Head Shrinking Machine

(which automatic spoke making machine can complete the work by changing mould)

For the butted spoke making, it need to make variable diameter for the spoke wire in Bicycle Butted Spoke Variable Diameter Making Machine,  and Bicycle Butted Spoke Variable Diameter Making Machine require one head of the wire can insert into the mould and clamp the head. So we need to get head shrink wire first.

2. Bicycle Butted Spoke Variable Diameter Making Machine

Full-Automatic-Butted-Spokes-Making-Machine

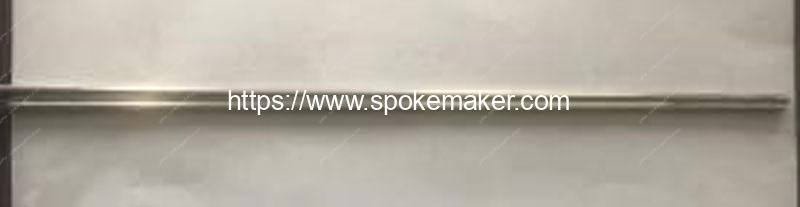

Bicycle Butted Spoke Variable Diameter Making Machine is used to make butted spoke or reduced spoke. It make the steel wire rod diameter different by clamp and drawing processing.  According to spoke diameter variable length requirement, we can make use different mould to produce.

Specification of Bicycle Butted Spoke Variable Diameter Making Machine

NameAutomatic Steel Wire Rod Cutting Machine
Diameter RangeФ2–5mm
Output18pcs/min
Motor PowerDiameter Changing PowerFeeding Power
1.5kW0.55kW
Weight600Kg
Dimension1200*1500*1200(mm)

Working Video of Spoke Variable Diameter Making Machine

3. Steel Wire Rod Head Cutting Machine

Automatic-Steel-Wire-Rod-Cutting-Machine

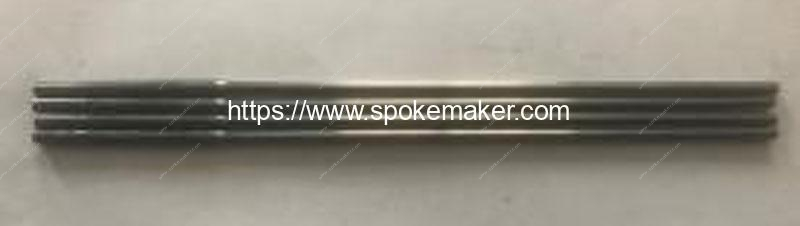

Full Automatic Steel Wire Head Cutting Machine can cut the steel wire rod head for reduced spoke or butted spoke making process. After Spoke Variable Diameter Making Machine processing, the clamp position of the spoke is damaged, so it need to be removed. it will need this steel wire head cutting machine.

Specification of Steel Wire Rod Head Cutting Machine

NameSteel Wire Rod Cutting Machine
Diameter RangeФ2–5mm
Output80pcs/min
Power1.15kW
Weight600Kg
Dimension1200*1200*1200(mm)

4. Auto Spoke Making Machine

Automatic-Bicycle-Spokes-Making-Machine

Bicycle Spokes Making Machine is used to make bicycle spoke automatically. It complete the following process, include steel wire straightening, steel wire cutting, bicycle head hammer, spoke angle bending and spoke head threading function. It working under low voice and long life span. The speed can reach 80 pieces /minutes. This is an idea equipment for making bicycle spoke. According to different requirement, Our bicycle spokes making machine can be used for making carbon steel galvanized bicycle spokes, nickel plating spokes, color spray painting spokes and stainless steel spokes

Working Video of Bicycle Spokes Making Machine

Company Profile

Romiter Group is a market leading designer and a manufacturer of bicycle spokes and motorcycle spokes making machine, which wins wide reputation for products with high efficiency, excellent reliability, easy maintenance and long lifespan.

We provides a complete bicycle and motorcycle spokes and nipple making solution, which includes Bicycle Spokes Making MachineBicycle Spokes Nipple Making Machine, High Speed Motorcycle Spokes Making MachineMotorcycle Spokes Nipple Making MachineButted Spokes Making Machine, Bladed Spokes Making Machine, Wire Straightening Cutting Machine MachineWire Rivet Making Machine, Cycle Spoke Nipples Packing Machine, Ellipse-shaped Spoke Making Machine, Cycle Rim Making Machine etc.
